WingCell® rotary wing pump

High pressure.
Low flow.
Low pulsation.

A patented hygienic positive displacement pump for food, pharma and chemical processing. 100–4000 l/h at up to 10 barG.

One pump. Three versions.

Same performance, built for your industry.

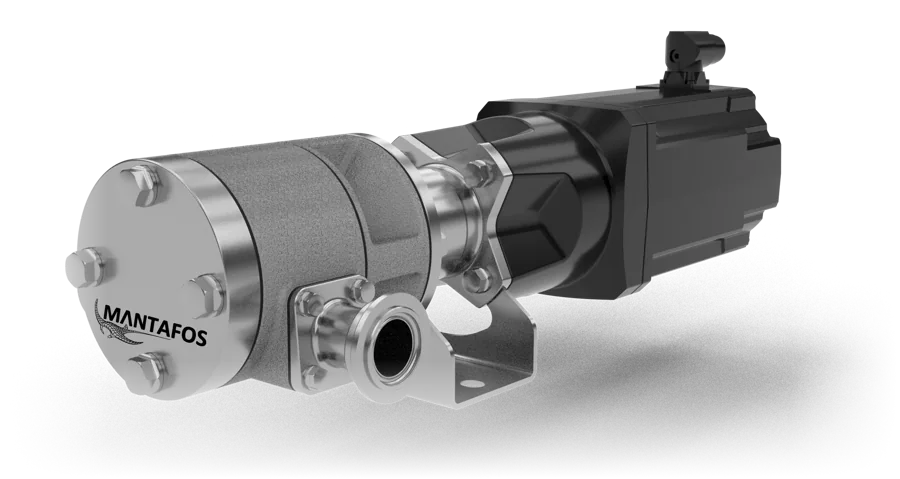

A robust, cost-effective version for chemical processes, without hygienic design requirements.

Explore →

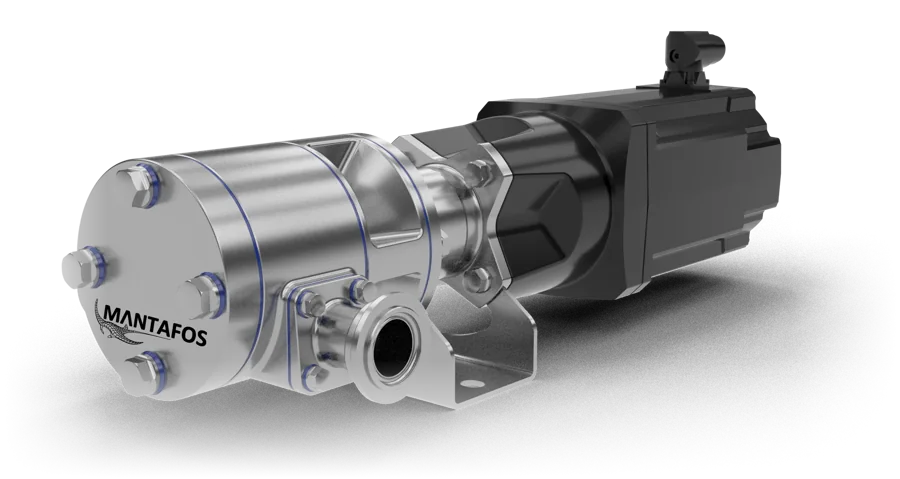

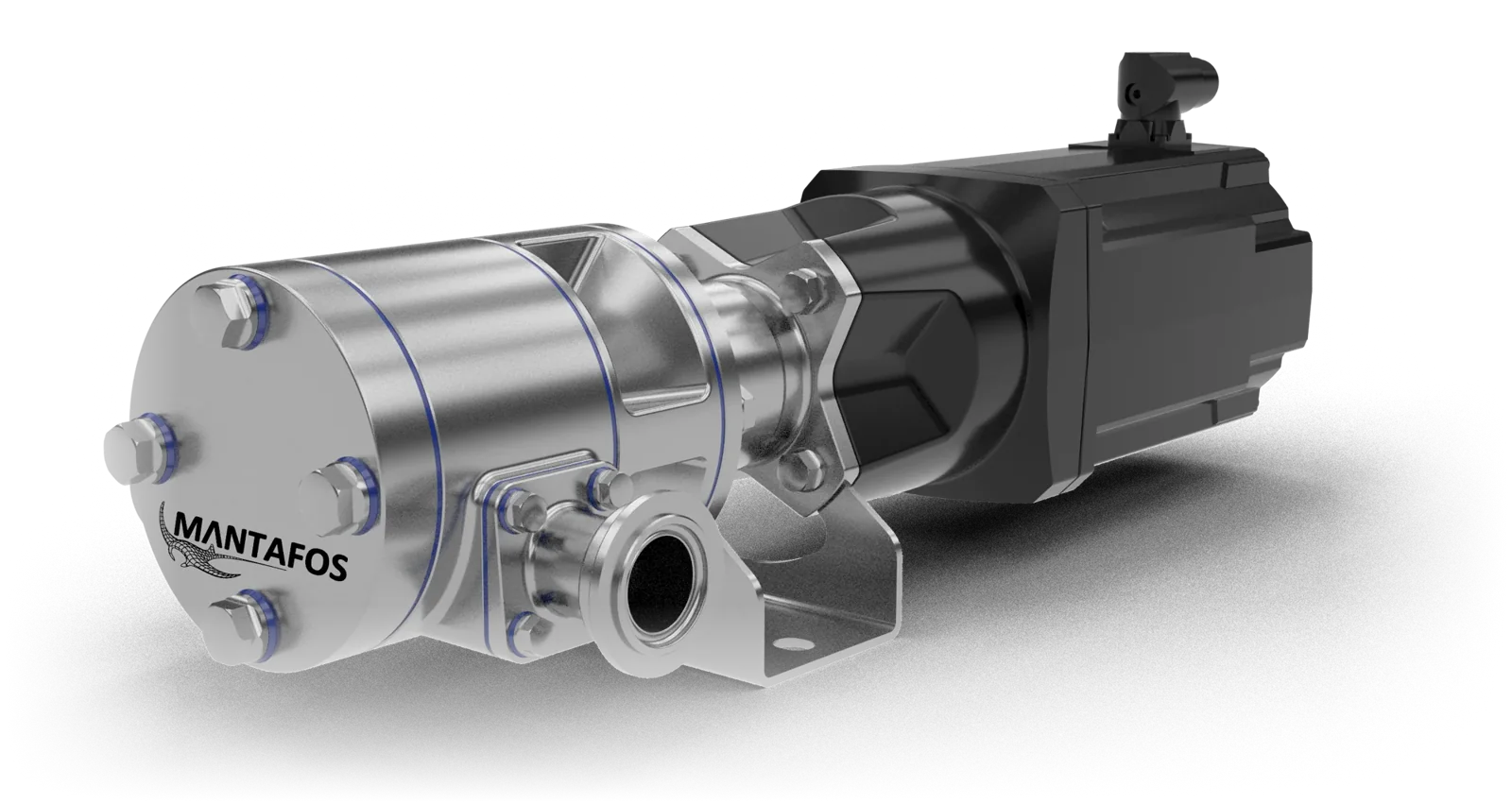

Hygienic design inside and out, with FDA and EU 1935/2004 approved contact materials.

Explore →

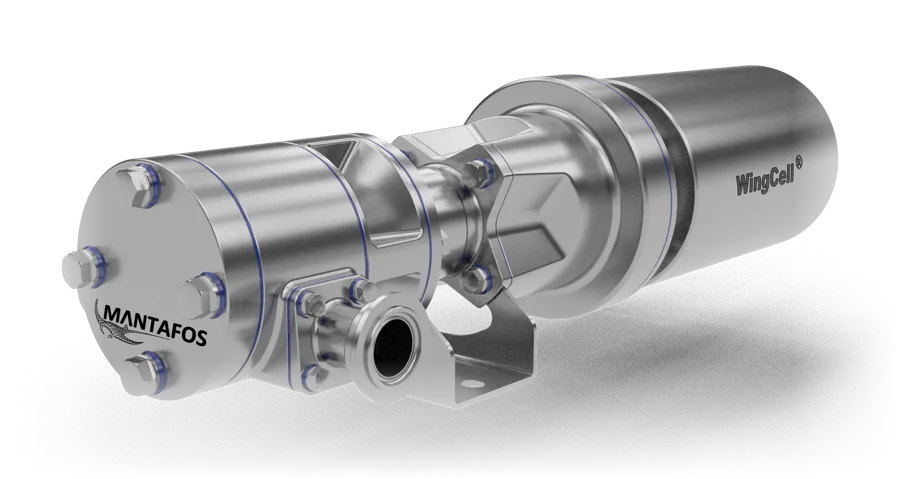

Polished surfaces, third-party certification to 3-A and EHEDG, and a hygienic stainless steel motor.

Available from August 2027

Explore →

0–10 barGPressure range

100–4000 l/hFlow range

±6 %Approximate pulsation depending on pressure

Compact21 kg and 534 mm incl. motor

No oilNo gears, IP67

Easy maintenanceNo special tools required

Pump selector

Choose your industry, flow and pressure. The selector shows the right version, speed, power consumption and minimum motor requirements.

IndustryChemicalFoodPharma

Flow (l/h) Pressure (barG)

Version–

Speed–

Power–

Min. motor torque–

Indicative values for water at approx. 20 °C. Viscosity and temperature change the result, so contact us to confirm your duty point.

Tell us about your fluid, flow and pressure, and we will tell you honestly whether WingCell is the right pump for the job.
